showC

可视化d对象的连接数据

胶结

load('Test2D.mat');
d.calculateData();
d.setUIoutput();

d.mo.bFilter(:)=true;
d.mo.bFilter(1:5:end)=false;
d.mo.zeroBalance();

showC(d, 'bFilter');
snapnow

UI output message box is not set in build.setUIoutput

二维力链

load('Test2D.mat');
d.calculateData();
d.setUIoutput();

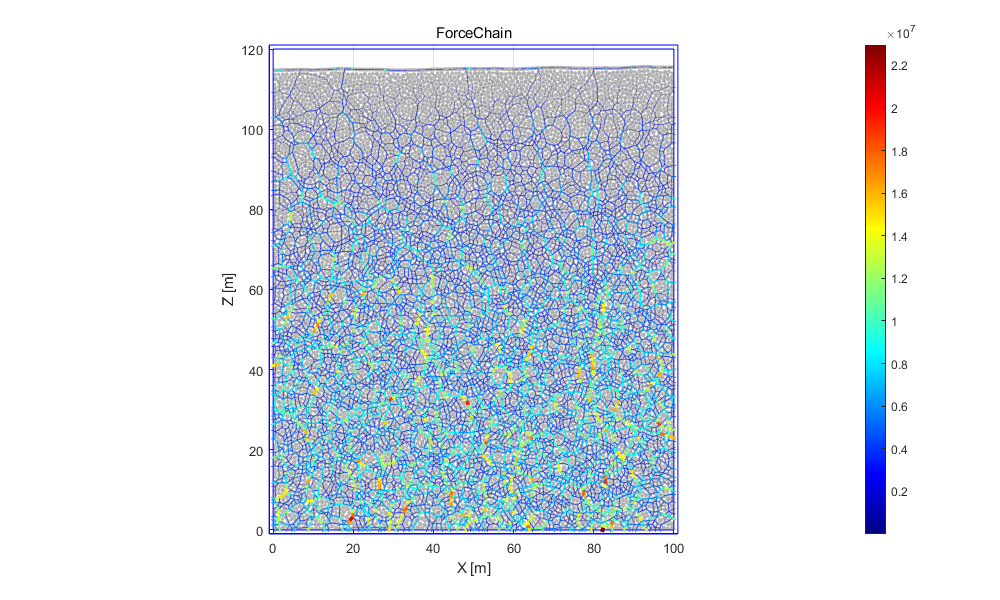

h = showC(d, 'ForceChain');
snapnow

% 调整配色及着色方式
set(h, 'FaceColor', 'flat');
snapnow;

UI output message box is not set in build.setUIoutput
Data is set in build.showData

三维力链

load('Test3D.mat');
d.calculateData();
d.setUIoutput();

h = showC(d, 'ForceChain');

UI output message box is not set in build.setUIoutput

调整colormap

colormap("jet");snapnow;

其他属性数据

load('Test3D.mat');
d.calculateData();
d.setUIoutput();

h = showC(d, 'nFnX');
colormap("jet")

UI output message box is not set in build.setUIoutput
